TF,19KV-2X250V,25KVA,1PH SWER,HANG

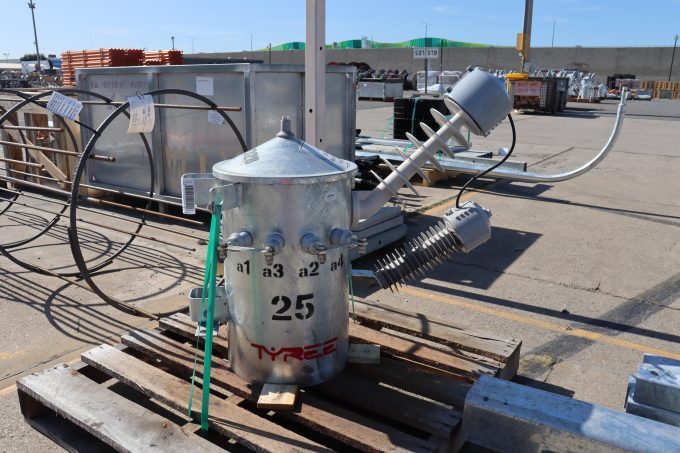

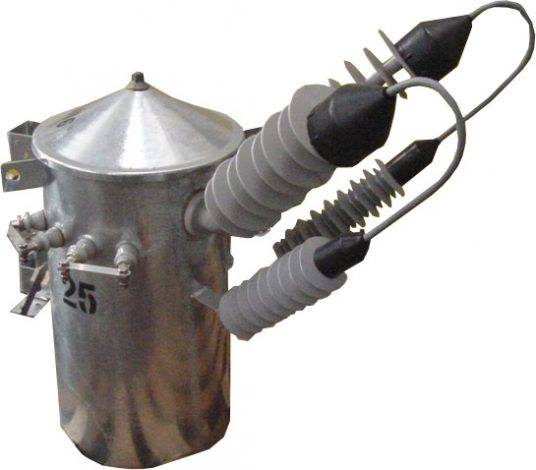

TRANSFORMER,19KV-2X250V,25KVA,1PH SWER,HANGING Dist Type-Swer,Pv=19kv,Sv=2x250v,1ph,25kVA,Off Cct Tap Selector +10% To - 5% (2.5% Steps)Surge Arrestors,Pole Mtd HANGING Type, Hv Ph Markings =Sw,Er (A2, A1) LvPh Markings =A1,A3,A2,A4

Part No.: 1012328

Estimated Availability: 18th Oct 2024

Gross Weight: 223kg

NET Weight: 215kg

Dimensions: W590MM D970MM H840MM

CURRENT RATING A SECONDAY MM: 50-100

CURRENT RATING A PRIMARY MM: 1.32

NEUTRAL TAP POSITION MM: 5

TAP CHG OR STEP CHG PCT MM: 2.5

TAP PERCENTAGE RANGE MM: +10% TO -5%

VOLTAGE TERTIARY RATED KV MM: NONE

VOLTAGE SECONDARY RATED KV MM: 2X0.25

VOLTAGE PRIMARY RATED KV MM: 19

INSULATION MEDIUM MM: MINERAL OIL

BUSHING TYPE HV-LV MM: CYCLOALEPHATIC-PORCELAIN

PHASING MM: SWER

TRANSFORMER TYPE MM: POLE HANGING

ASSET TYPE MM: TRANSFORMER
