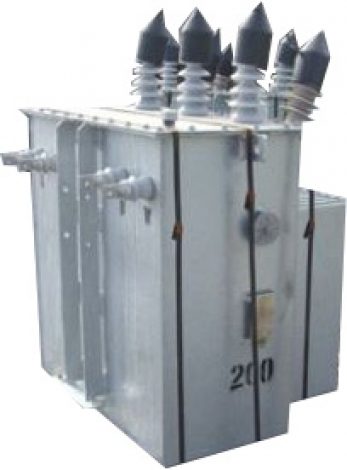

TRANSFORMER,11-2x.250KV,50KVA,1PH,HANGING Dist Type,Pv=11kv,Sv=2x250v,1ph,Off Cct Tap Selector +10% To -5% In 2.5% Steps,SurgeArrestors,Pole Mtd HANGING Type,Unfused, AEEMA Hv Ph Markings A1,A10 LvPh Markings A1,A3,A2,A4
You must login or register to see the price
Part No.: LA5119
Estimated Available: 24
Gross Weight: 365kg
NET Weight: 305kg
Dimensions: W725MM D710MM H1040MM
TAP PERCENTAGE RANGE MM: +10% TO -5%
TAP CHG OR STEP CHG PCT MM: 2.5
VOLTAGE TERTIARY RATED KV MM: NONE
VOLTAGE SECONDARY RATED KV MM: 2X0.25
NEUTRAL TAP POSITION MM: 5
CURRENT RATING A PRIMARY MM: 4.55
CURRENT RATING A SECONDAY MM: 100-200
VOLTAGE PRIMARY RATED KV MM: 11
INSULATION MEDIUM MM: MINERAL OIL
BUSHING TYPE HV-LV MM: PORCELAIN-PORCELAIN
PHASING MM: 1PH
TRANSFORMER TYPE MM: POLE HANGING
ASSET TYPE MM: TRANSFORMER
